Select thousands of different symbols from the Truss Design Center Center for your truss planning.Add suspension points and motors. Connect rigging levels with motors or deadhangs. Use weights to simulate loads.

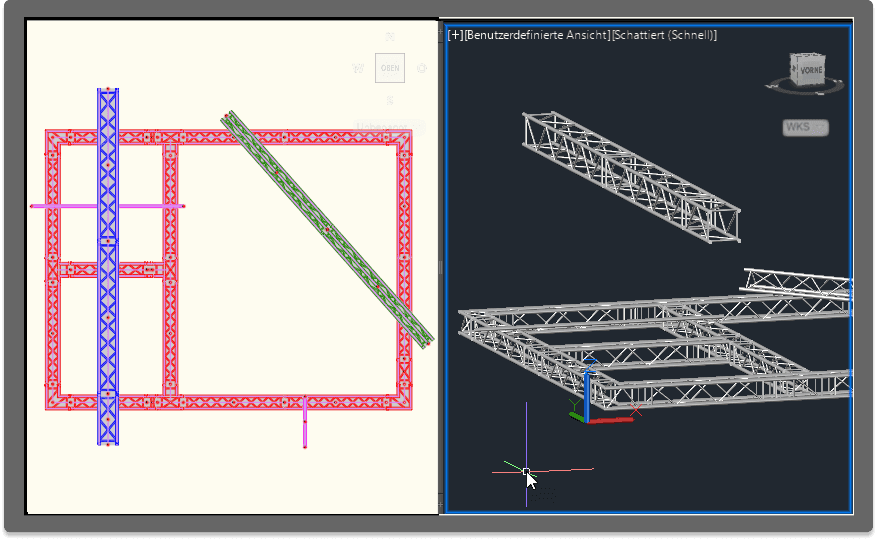

A large number of AutoSTAGE truss symbols save a 2D and a 3D view. . If the drawing is viewed in the plan view, a 2D symbol is displayed. For all other views, e.g. in isometry, a 3D symbol is displayed.

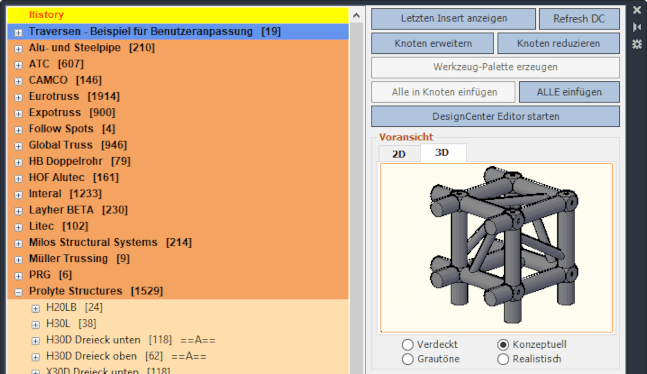

The Truss Design Center is used to insert truss symbols into the drawing by double-clicking.

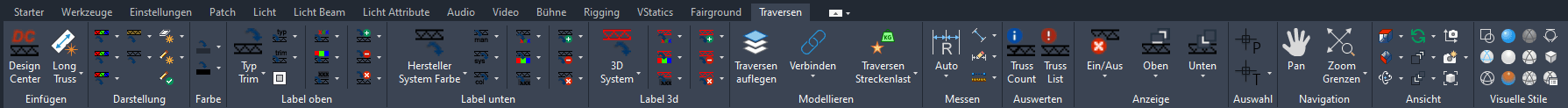

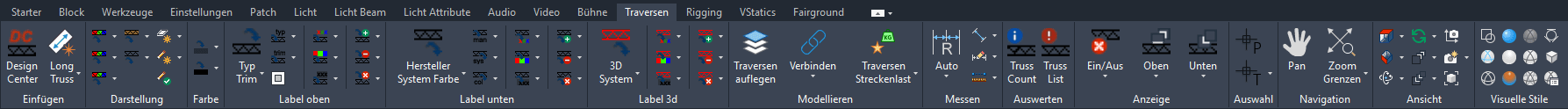

Add Truss symbols and enjoy the flexibility of working with them. In the Truss Tab you will also find many useful functions with which you can influence the display and properties of the traverse symbols in a variety of ways. Create material and overview lists of your planning.
Details on the truss functionsPlanning made easy!
